Sub-micron point computerized micrometer wireless
Sub-micron point computerized micrometer MICROTECH with intelligent MICS measuring system has range up to 100mm, resolution 0.1 microns and accuracy up to 1 microns.
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description
Sub-micron point computerized micrometer MICROTECH with intelligent MICS measuring system has range up to 100mm, resolution 0.1 microns and accuracy up to 1 microns.
MICROTECH sub-micron micrometer has friction thimble with 6-9 N measuring force.
Computerized MICS measuring system of micrometer has such functions:
-internal memory with statistic mode
-Color Go/NoGo indication (limits)
-Peak function (Min/Max)
-Timer (reading to memory or data transfer)
-Formula – calculation indicator Ax2+Bx+C
-Resolution selection (0,1 / 1/ 10 microns)
-mm/inch selection
-Temperature compensation
-Mathematical error compensation
-Wireless data transfer to Windows, iOS, Android devices
-USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
-Built in rechargeable Li-Pol battery with magnetic charger
-Color hi-res display 2,4 inch with Touchscreen.
MICROTECH micrometers pass metrological control in accredited ISO 17025:2019 metrological lab.
All micrometers complete with calibration protocol, manual, magnetic charging cable and plastic box.
Additional information
Resolution, mm | |
---|---|
Data output | |
Waterproof | |
Indication | |
Battery | |

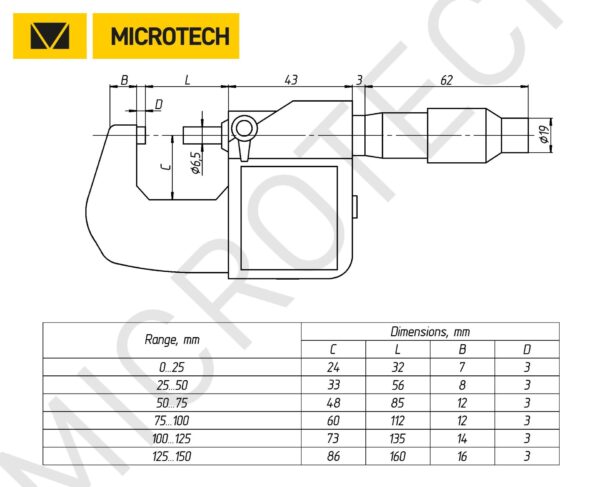

Meas. range | 0-25 mm / 0-1 inch, 25-50 mm / 1-2 inch, 50-75 mm / 2-3 inch, 75-100 mm / 3-4 inch |
