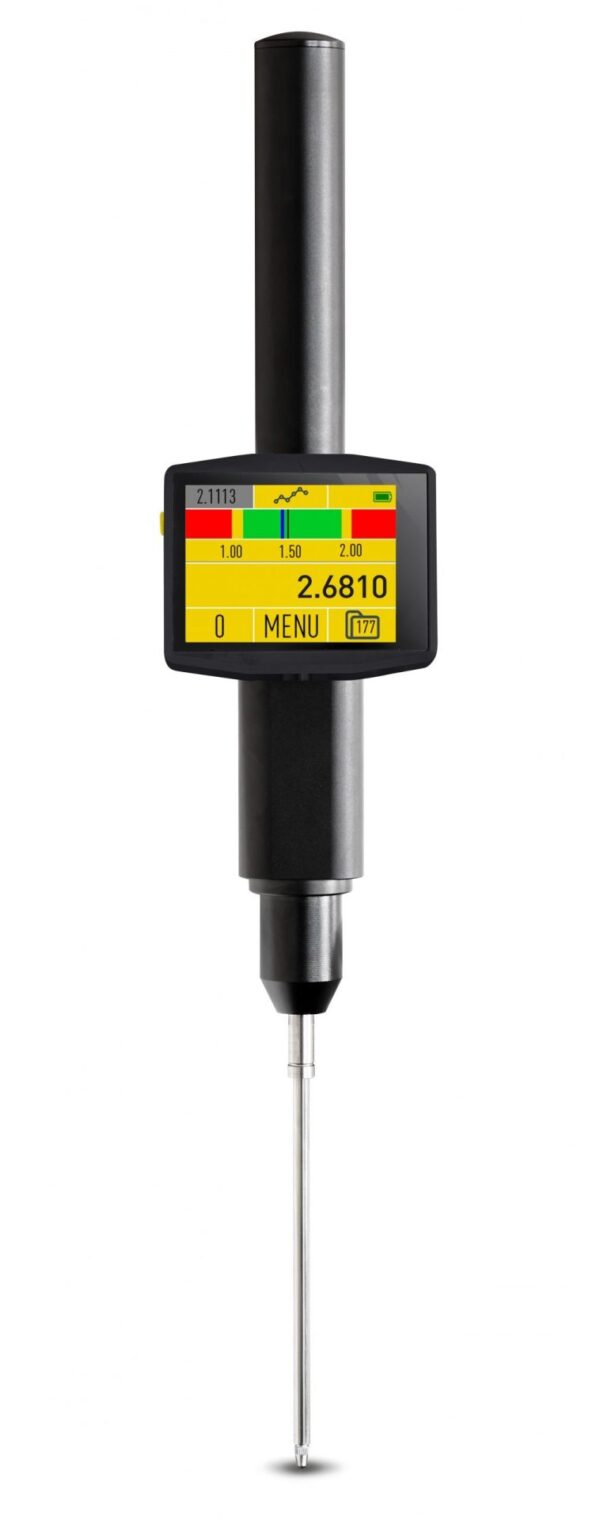

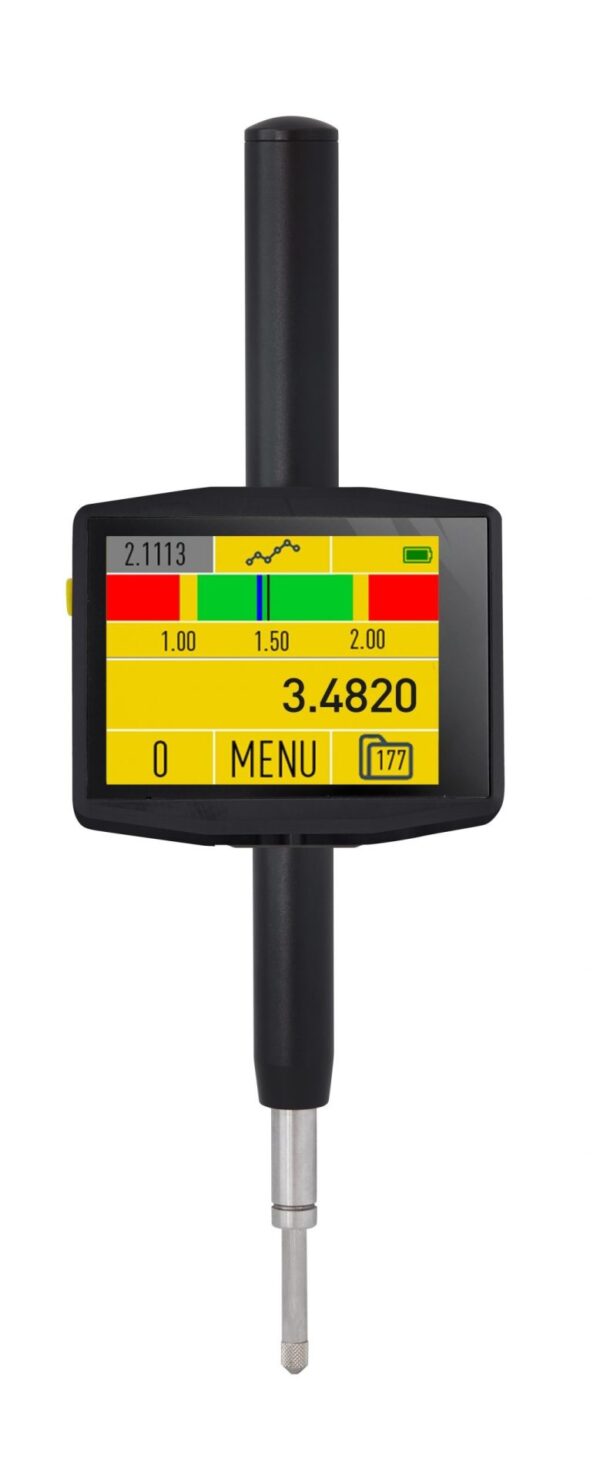

Sub-micron Industry 4.0 indicator Wireless

MICROTECH manufacturing Tablet Sub-micron indicator adopted to Industry 4.0

SKU: 120139135 Category:
Clear

*taxes are not included

Description

MICROTECH manufacturing Tablet Sub-micron indicator adopted to Industry 4.0
Tablet indicators are using computerized measuring system developed and patented by MICROTECH  (Patents UA126928, UA99686) with 0.1 micron resolution.
Computerized Tablet indicators can be using for precision linear measuring or in custom stands and devices for Radius, Sphere and others.

TABLET measuring module of indicator has such functions :

  • ON-line GRAPHICAL mode
  • Color ANALOG adjustable scale
  • HUB Connection (external MICROTECH Wireless device connection)
  • 2D Connection possibilities (external device Wireless connection and indication)
  • PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode
  • Quick reading system 50 val/sec
  • Internal MEMORY for 2000 values with Folders system and statistic,
  • LIMITS (Go/NoGo) function with color indication,
  • PEAK (Max/min),
  • TIMER
  • FORMULA Ax2+Bx+C, RADIUS, SPHERE
  • Manual TEMPERATURE COMPENSATION
  • LINEAR compensation
  • RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
  • CALIBRATION date control
  • Rechargeable Li-Pol battery with micro-USB socket
  • FIRMWARE Update with USB cable
  • WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
  • WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
  • Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
  • USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH indicators pass metrological control in ISO 17025 ILAC accredited laboratory in automated calibration stand.

IT’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 INDICATORS FOR CUSTOMER REQUEST

Additional information

Resolution, mm

Data output

, ,

Indication

Battery

Meas. range

, , , ,

Accuracy

±0,002 mm, ±0,007 mm, ±0,005 mm, ±0,012 mm, ±0,0016 mm, ±0,009 mm, ±0,003 mm
