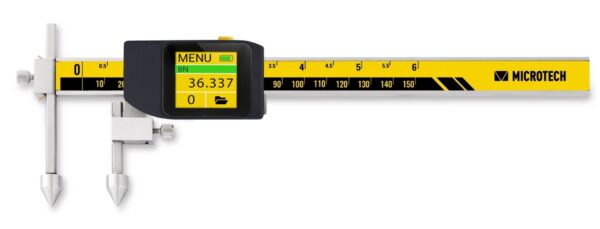

Offset centerline e-Force computerized caliper IP54

Offset centerline e-Force computerized caliper IP54 MICROTECH with intelligent MICS measuring system and multi Force 1-20N control.
MICROTECH update calipers with electronic e-Force control module, that gives possibility measure with reuquested Force. Measuring Force can be selected throw menu in range 1-20N. Automatic Force mode gives possibility saving to memory or transfer to app actual value upon reaching a given Force (1-20N). Patented e-Force technology improving accuracy of caliper and automized measuring process.
This precision calipers has 0-160; 10-210; 10-310; 20-520; 20-1020; 20-1520; 20-2020; 20-3020mm (0.4-6.4”; 0.4-8.4”; 0.4-12.4”; 0.8-20.4”; 0,8-40,4″; 0,8-40,4″; 0,8-60,4″; 0,8-80,4″ inch) ranges.
Computerized MICS measuring system of caliper has such functions:
-internal memory with statistic mode
-Color Go/NoGo indication (limits)
-Peak function (Min/Max)
-Timer (reading to memory or data transfer)
-Formula – calculation indicator Ax2+Bx+C
-Resolution selection (5 / 10 microns)
-mm/inch selection
-Temperature compensation
-Mathematical error compensation
-Wireless data transfer to Windows, iOS, Android devices
-USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
-Built in rechargeable  Li-Pol battery with magnetic charger
-Color hi-res display 1,54 inch with Touchscreen.

MICROTECH WIRELESS caliper has 3 data transfer modes:

• WIRELESS data transfer to MDS app (available app’s versions for Windows, Android, iOS, MacOS)  Link to MDS app’s

• WIRELESS HID mode direct to any device and app (like a keyboard)

• WIRELESS HID+MAC mode direct to any device and app (like a keyboard) with MAC address

Electronic module has IP54 waterroof, 0.005mm / 0.0002 inch resolution, mm/inch conversion and ORIGIN function.

MICROTECH calipers has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ilac accredited laboratory with no extra cost calibration certificate

For customer request it’s possible to manufacturing special range and anvils configuration.
