Universal computerized micrometer Industry 4.0
Sub-micron universal computerized micrometer wireless MICROTECH with Wireless & USB data transfer adopted to Industry 4.0
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description

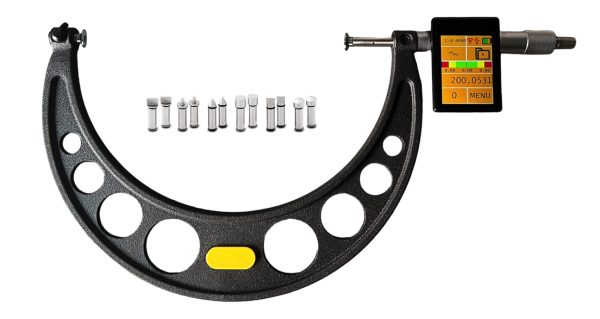

Sub-micron universal computerized micrometer wireless MICROTECH with Wireless & USB data transfer adopted to Industry 4.0

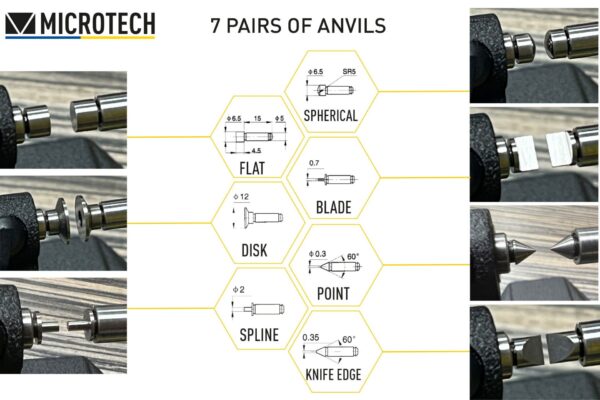

Universal micrometer equipped with 7 pairs of interchangeable anvils: flat, spherical, disk, blade, point, spline, knife edge.
MICROTECH sub-micron micrometer has friction thimble with non-rotating spindle.
Computerized MICS measuring system of micrometer has such functions:
-internal memory with statistic mode
-Color Go/NoGo indication (limits)
-Peak function (Min/Max)
-Timer (reading to memory or data transfer)
-Formula – calculation indicator Ax2+Bx+C
-Resolution selection (0,1 / 1/ 10 microns)
-mm/inch selection
-Temperature compensation
-Mathematical error compensation
-Wireless data transfer to Windows, iOS, Android devices
-USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
-Built in rechargeable Li-Pol battery with magnetic charger
-Color hi-res display 2.4 inch with Touchscreen.
MICROTECH micrometers pass metrological control in accredited ISO 17025:2019 metrological lab.
All micrometers complete with calibration protocol, manual, magnetic charging cable and plastic box.
Additional information
Resolution, mm | |
---|---|
Data output | |
Waterproof | |
Indication | |
Battery | |
Meas. range | 0-25 mm / 0-1 inch, 25-50 mm / 1-2 inch, 50-75 mm / 2-3 inch, 75-100 mm / 3-4 inch, 100-125 mm / 4-5 inch, 125-150 mm / 5-6 inch, 150-175 mm / 6-7 inch, 175-200 mm / 7-8 inch, 200-225 mm / 8-9 inch, 225-250 mm / 9-10 inch, 250-275 mm / 10-11 inch, 275-300 mm / 11-12 inch, 300-400 mm / 12-16 inch, 400-500 mm / 16-20 inch, 500-600 mm / 20-24 inch, 600-700 mm / 24-28 inch, 700-800 mm / 28-32 inch, 800-900 mm / 32-36 inch, 900-1000 mm / 36-40 inch |
