Computerized e-Force caliper Industry 4.0

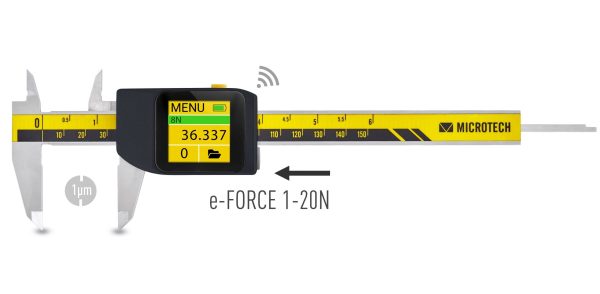

Computerized e-Force caliper MICROTECH with multi Force 1-20N control with Wireless and USB data output adopted to Industry 4.0.
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description
Computerized e-Force caliper MICROTECH with multi Force 1-20N control with Wireless and USB data output adopted to Industry 4.0.
MICROTECH update calipers with electronic multi-Force control module, that gives possibility measure all time with a same Force. Measuring Force can be selected throw menu in range 1-20N. Automatic Force mode gives possibility saving to memory or transfer to app actual value upon reaching a given Force (1-20N). Patented e-Force technology improving accuracy of caliper and automized measuring process.

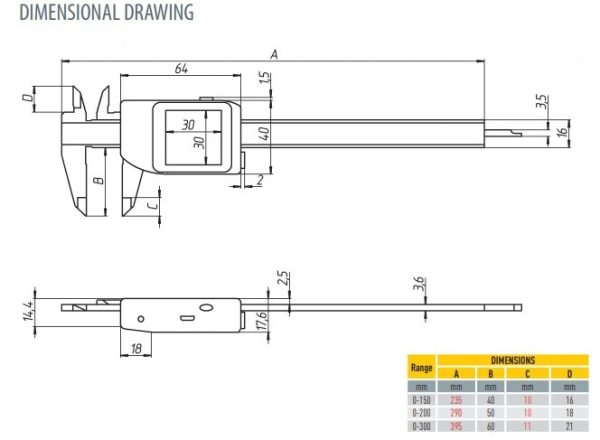

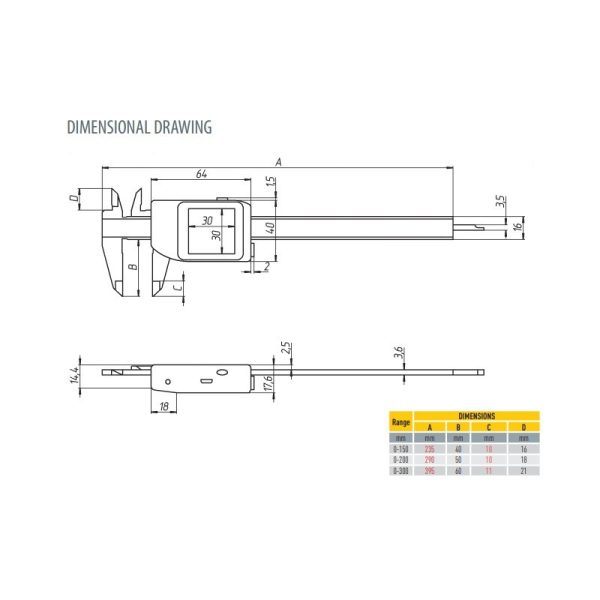

These precision calipers has 150, 200, 300 mm (6, 8, 12 inch) ranges.
Swiss made reading system has 1 micron resolution.

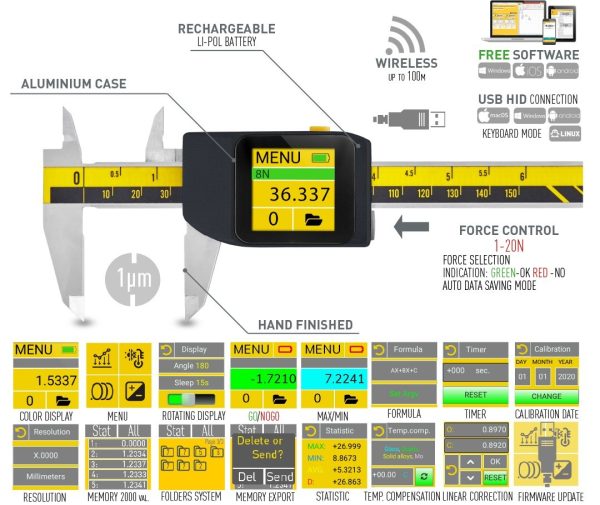

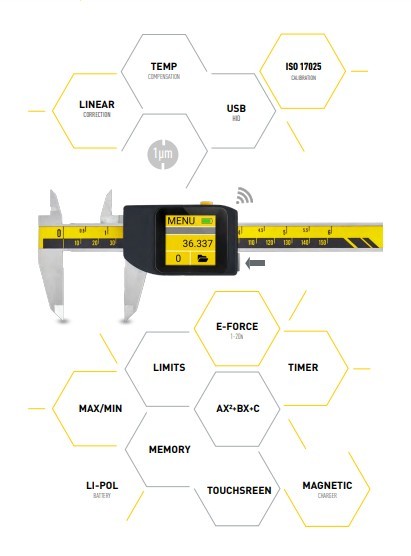

Computerized MICS measuring system of caliper has such functions:
-internal memory with statistic mode
-Color Go/NoGo indication (limits)
-Peak function (Min/Max)
-Timer (reading to memory or data transfer)
-Formula – calculation indicator Ax2+Bx+C
-Resolution selection (1 / 10 microns)
-mm/inch selection
-Temperature compensation
-Mathematical error compensation
-Wireless data transfer to Windows, iOS, Android devices
-USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
-Built in rechargeable Li-Pol battery with magnetic charger
-Color hi-res display 1,54 inch with Touchscreen.
MICROTECH WIRELESS caliper has 3 data transfer modes:
• WIRELESS data transfer to MDS app (available app’s versions for Windows, Android, iOS, MacOS) Link to MDS app’s
• WIRELESS HID mode direct to any device and app (like a keyboard)
• WIRELESS HID+MAC mode direct to any device and app (like a keyboard) with MAC address
MICROTECH calipers pass metrological control in accredited ISO 17025:2019 metrological lab.
All calipers complete with calibration protocol, manual, magnetic charging cable and plastic box.
Additional information
Meas. range | |
---|---|
Range up to, mm | |
Reading | |
Data output | |
Waterproof | |
Indication | |
Battery | |
Calibration | |
Jaws type |
