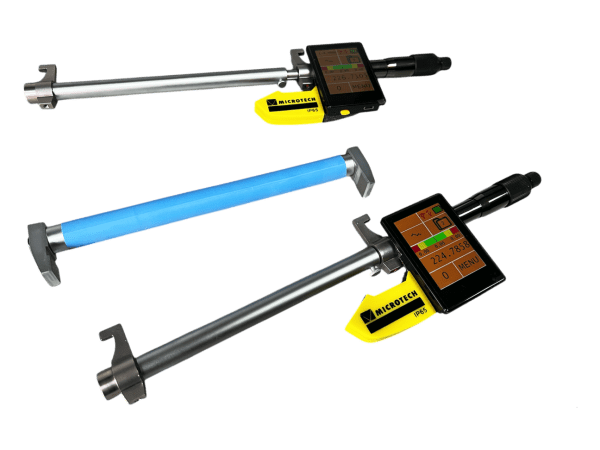

Computerized Sub-micron inside micrometer
Tablet inside micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description
MICROTECH manufacturing Tablet Sub-micron inside micrometer adopted to Industry 4.0
Tablet inside micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution
MICROTECH manufacturing Inside micrometers with range up to 300mm. Setting rods for big ranges available for request.
TABLET measuring module of micrometer has such functions :
Tablet inside micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution
MICROTECH manufacturing Inside micrometers with range up to 300mm. Setting rods for big ranges available for request.
TABLET measuring module of micrometer has such functions :
- ON-line GRAPHICAL mode
- Color ANALOG adjustable scale
- HUB Connection (external MICROTECH Wireless device connection)
- 2D Connection possibilities (external device Wireless connection and indication)
- PROBE connection (external indicator or lever indicator Wireless connection) with AUTO mode
- internal MEMORY for 2000 values with Folders system and statistic,
- LIMITS (Go/NoGo) function with color indication,
- PEAK (Max/min),
- TIMER
- FORMULA Ax2+Bx+C
- Manual TEMPERATURE COMPENSATION
- LINEAR compensation
- RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
- CALIBRATION date control
- Rechargeable Li-Pol battery with micro-USB socket
- FIRMWARE Update with USB cable
- WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
- WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
- USB HID data transfer to any system and app (keyboard mode) with data config possibilities
All MICROTECH micrometers has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ILAC accredited laboratory.
IT’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 INSIDE MICROMETERS FOR CUSTOMER REQUEST
IT’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 INSIDE MICROMETERS FOR CUSTOMER REQUEST
Additional information
| Resolution, mm | |
|---|---|
| Data output | |
| Waterproof | |
| Indication | |
| Battery | |
| Meas. range | 5-30 mm / 0.2-1.2 inch, 25-50 mm / 1-2 inch, 50-75 mm / 2-3 inch, 75-100 mm / 3-4 inch, 100-125 mm / 4-5 inch, 125-150 mm / 5-6 inch, 150-175 mm / 6-7 inch, 175-200 mm / 7-8 inch, 200-225 mm / 8-9 inch, 225-250 mm / 9-10 inch, 250-275 mm / 10-11 inch, 275-300 mm / 11-12 inch |
