Bore measuring caliper
MICROTECH manufacturing bore measuring caliper for measurement on vertical boring machine and line machine without having to remote the tool.
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description

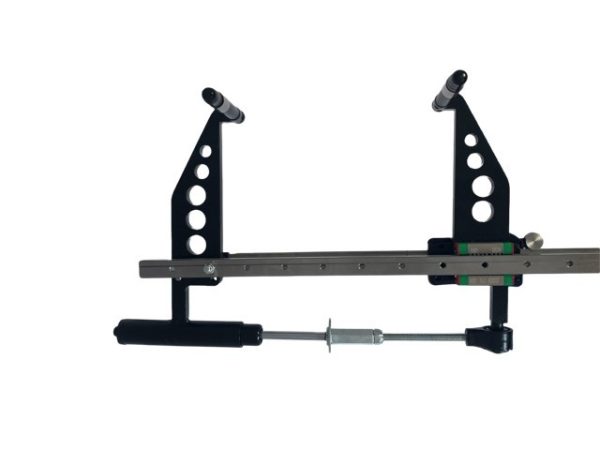

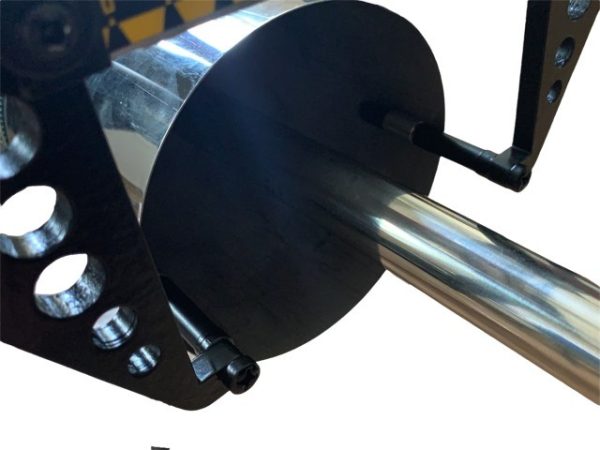

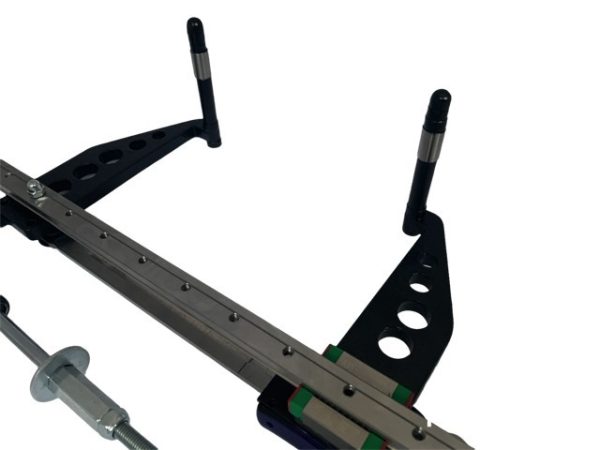

MICROTECH manufacturing bore measuring caliper for measurement on vertical boring machine and line machine without having to remote the tool.
There are modifications with standard configuration or with constant force module basing on roll sliding system.
This type of bore caliper has a lot of advantages with bore gauges for retracting boring bar. Max measuring range can be up to 2,5 m (100 inch), max bore diameter 550mm and depth up to 200 mm.

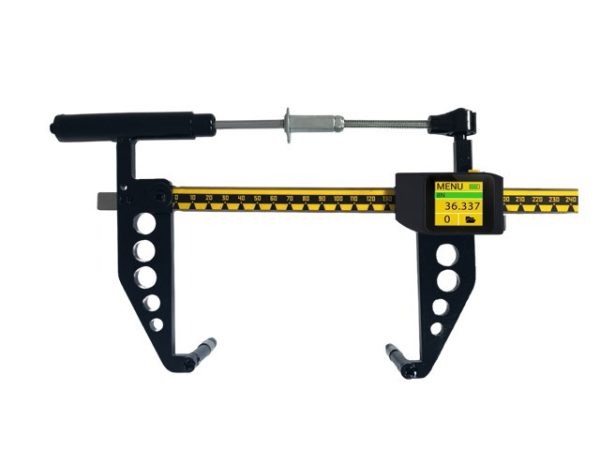

Can be equipped with digital electronics with Preset function or micron Computerized electronics with Wireless and USB data output with Free app’s for Windows, Android, iOS.
MICROTECH WIRELESS caliper has 3 data transfer modes:
• WIRELESS data transfer to MDS app (
available
app’s versions for Windows, Android, iOS, MacOS) Link to MDS app’s
• WIRELESS HID mode direct to any device and app (like a keyboard)
• WIRELESS HID+MAC mode direct to any device and app (like a keyboard) with MAC address
All MICROTECH gauges pass metrological control in ISO17025 accredited laboratory.
Additional information
| Indication | |
|---|---|
| Battery | |
| Calibration | |
| Meas. range | 20-300 mm / 12 inch, 30-500 mm / 20 inch, 50-1000 mm / 40 inch, 1000-1500 mm / 60inch, 1500 – 2000 mm / 80 inch, 2000-2500 mm / 100inch |
