Big screen digital caliper IP54
MICROTECH manufacturing ultra big screen precision calipers with IP54 protection with optimal price level.
SKU: 141083112
Categories: Calipers, Digital calipers, Instruments
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description
MICROTECH manufacturing ultra big screen precision calipers with IP54 protection with optimal price level.
These precision calipers has 10 micron (0,01mm) resolution with 0.02mm accuracy on range up to 200mm on external measuring jaws (On internal jaws and depth jaws accuracy according ISO13385)
These calipers has 150, 200, 300 mm (6, 8, 12 inch) ranges and high quality electronics with ultra big screen with 13.5mm digit heights. Electronics module has such functions:
These precision calipers has 10 micron (0,01mm) resolution with 0.02mm accuracy on range up to 200mm on external measuring jaws (On internal jaws and depth jaws accuracy according ISO13385)
These calipers has 150, 200, 300 mm (6, 8, 12 inch) ranges and high quality electronics with ultra big screen with 13.5mm digit heights. Electronics module has such functions:
- mm/inch conversion
- zero setting
- autosleep / auto wake function
- usb data output (optional data cable)
- 3V CR1632 battery
All MICROTECH calipers has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ilac accredited laboratory with no extra cost calibration certificate.

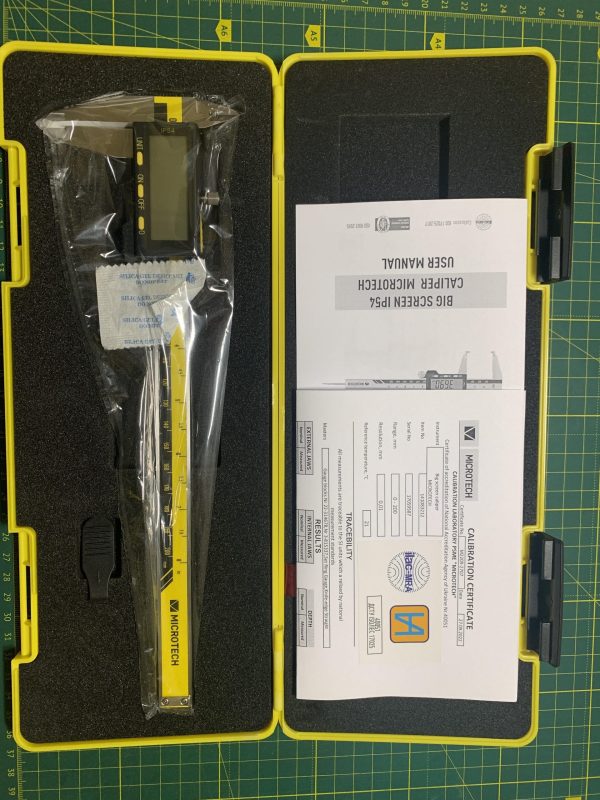

Caliper supplying with high quality plastic box, manual, calibration protocol.
For data transfer it can be equipped with optional USB cable (Item No29919150) that can transfer data in keyboard mode direct to requested app.
Caliper supplying with high quality plastic box, manual, calibration protocol.
For data transfer it can be equipped with optional USB cable (Item No29919150) that can transfer data in keyboard mode direct to requested app.
Additional information
Meas. range | |
---|---|
Resolution, mm | |
Data output | |
Jaws type | |
Waterproof | |
Indication | |
Battery | |
Additional | No roller, Round rod, Standard rod |
