Big depth bore gauge Wireless

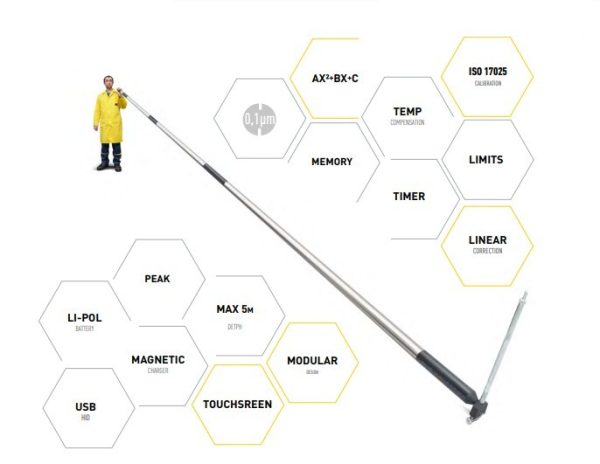

Big depth computerized transformer bore gauges, that equipped with sub-micron computerized indicator.

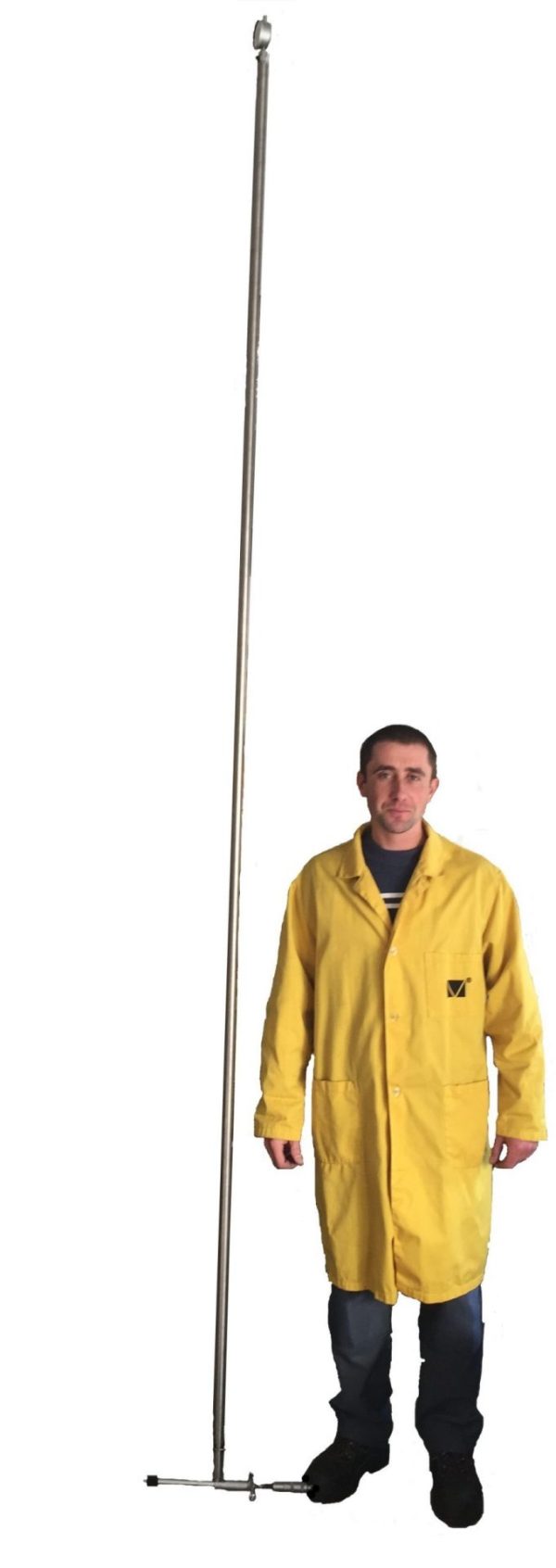

Modular technology on bore gauge gives possibility manufacture bore gauges with depth up to 10 meters (400 inch). Available standard depth are 1 , 2, 3, 5, 7, 10 meters also for customer request it’s possible to make other depth of bore gauge.
SKU: 131050745 Categories: ,

*taxes are not included


Computerized transformer bore gauges with depth 1, 2, 3, 5, 7, 10 meters  for customer request

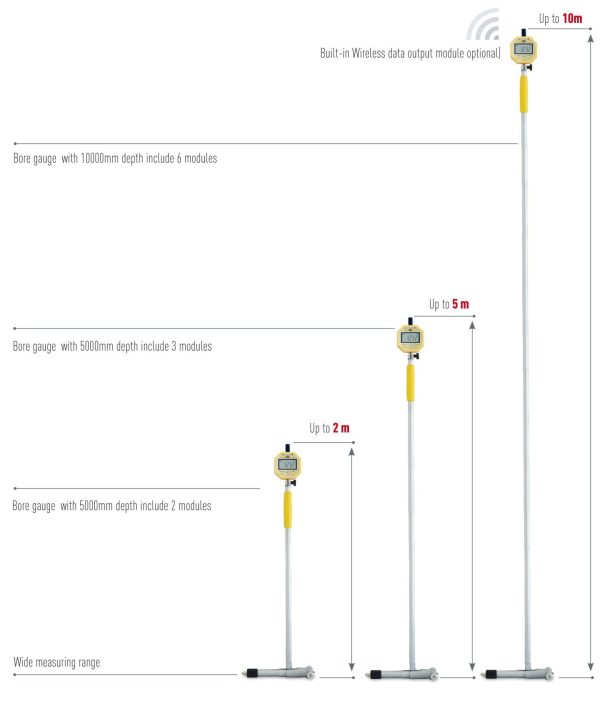

Modular bore gauge consist extensions in construction for easier transportation.
Modular bore gauge has measuring  range   up to 1000mm (0-40 inch)
Big range modular bore gage equipped with precision sub-micron indicator from MICROTECH  with 0.1 micron resolution and higher accuracy, then competitors indicators.
Computerized measuring module of indicator equipped with internal memory, Go/NoGo functions with color indication, Max/min, Formula function, manual temperature and error compensation.Color display and Touchscreen provides high usability of sub-micron indicator.
Built in Wireless data transfer module gives possibility transfer measuring data and data from memory to MICROTECH MDS software. There are modifications of Software for Windows, Android, iOS devices.
USB HID interface can transfer data directly to Windows, Mac OS, Linux application with cable from set.

MICROTECH Bore gauges pass metrological control in ISO17025 accreditated laboratory.

it’s possible to make custom range and depth of bore gauge.

Additional information

Resolution, mm

Data output



Meas. range

, , , , , ,


3000 mm / 120 inch, 5000 mm / 200 inch, 7000 mm / 280 inch, 10000 mm / 400 inch
